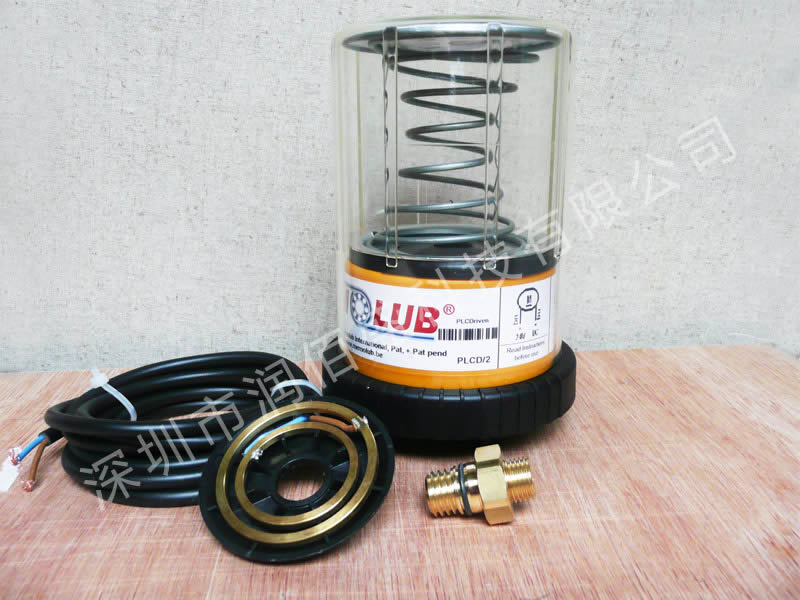

MEMOLUB PLCD
MEMOLUB ® PLCD automatic oiling device is composed of an external 24VDC power and each cycle of the output frequency and duration is determined by your
PLC (programmable logic controller) program. Do not use the battery. Lubrication of various mobile devices, robots, transport
It is the most ideal machine etc.
MEMOLUB ® PLCD three models:
Standard:MEMOLUB PLCD 120
Mega:MEMOLUB PLCD 240
Giga:MEMOLUB PLCD 480
3, product features:
The use of medium: oil or grease (various models of NLGI#2 and within the oil)
Storage capacity: 120cc 240cc 480cc (replaceable)
Each output oil: 0.635cc
Every action times: according to customer's PLC control procedure to determine.
Working pressure: 350 psi (25 Bar)
Oil output type: single point or multipoint (1 - 12 lubrication points)
Operating temperature: 15 ℃ -50 ℃
Power supply: 24VDC external power supply
Control switch: external switch for controlling the power supply
Install the screw thread: 1/4NPT (M) -1/8NPT (M) available
Mounting distance: single point 12 meters
|
